Modular Design Whole House Water Softener Supports Parallel Expansion of Multiple Units
Brief Description
Designed with a focus on reliability and adaptability, this fully automatic water softener utilizes a fiberglass resin tank and engineering plastic valve body, making it acid and alkali resistant, anti-aging, and suitable for harsh industrial environments. A smart flow meter monitors water consumption in real time, regenerating on demand and saving over 30% on regenerant. Widely used for cooling tower makeup water, reverse osmosis pretreatment, and cleaning line water supply, improving the overall water system operating efficiency.
Product Overview
The automatic sodium ion exchange water softening system is an imported control device combined with domestic assembly to form a fully automatic softening equipment.It is manufactured using advanced manufacturing processes and technologies, with resin tanks made of high-quality fiberglass materials.The equipment boasts excellent quality, stable and reliable performance, achieving fully automatic operation of soft water equipment without the need for dedicated management.It offers higher cost effectiveness compared to similar domestic products and has been widely used nationwide with excellent results.
This equipment is widely used in industrial or civil systems such as boilers,air conditioning, refrigeration, etc., in industries including petrochemicals, light industry textiles, food hygiene, hotels, and restaurants.
Technical Advantages
1. New automatic control
Automatic water supply, backwashing, salt absorption, replacement, forward washing, water replenishment, stable operaton.
2. Continuous and stable water supply
Fixed-flow automatic regeneration ensures the production of high-quality softened water.
3. Reasonable and compact structure
Integrated soft water exchange tank and control valve save installation space, further improving operational reliability.
4. Multifunctional brine system
Automatic salt dissolution, automatic salt absorption, automatic adiustment of brine level to ensure relable automaticregeneration.
5. Uniform water distribution system
Provides uniform water flow inside the tank, ensuring efficient resin utilization and preventing resin loss.
6. Superior corrosion resistance
Avoids corrosion of equipment by regenerants and harsh environments.
7. Low energy consumption
Self-use water volume <2% of production water volume, salt consumption <100g/mmol, power consumption 10W-40W.
7. Low energy consumption
Self-use water volume <2% of production water volume, salt consumption <100g/mmol, power consumption 10W-40W.
Technical Parameters
| Technical Parameters |
| Feed Water Hardness |
Primary Sodium: <6.5mmol/L; Secondary Sodium: <10mmol/L |
| Output Hardness |
≤0.03mmol/L (for steam boilers) or customized to meet user requirements |
| Inlet Water Quality |
Temperature: 5℃-45℃; Ambient Temperature: 5℃-50℃ |
| Inlet Suspended Solids |
<5mg/L |
| Inlet Iron Content |
≤0.3mg/L |
| Inlet Water Pressure |
0.2MPa-0.5MPa |
| Inlet Free Chlorine |
≤0.3mg/L |
| Power Supply |
220V±10, 50HZ |
| Resin Type |
Strong-Acid Cation Exchange Resin |
| Salt Consumption |
<100g/mmol |
| Resin Type |
2-120minutes (optional) |
| Sensor |
Calcium Ion-Selective Electrode (optional) |
Equipment Model
| Model |
Water Production Capacity(T/h) |
Operating Mode |
| SYS－1RT(Q) |
0.5 |
Single valve, single tank |
| SYS－2RT(Q) |
1 |
| SYS－3RT(Q) |
2-3 |
| SYS－4RT(Q) |
3-4 |
| SYS－5RT(Q) |
4-5 |
| SYS－8RT(Q) |
6-8 |
| SYS－10RT(Q) |
8-10 |
| SYS－15RT(Q) |
10-15 |
| SYS－18RT(Q) |
15-20 |
| SYS－20RT(Q) |
20-25 |
| SYS－30RT(Q) |
25-30 |
| SYS－40RT(Q) |
35-40 |
| SYS－50RT(Q) |
40-50 |
| SYS－55RT(Q) |
50-55 |
| SYS－1RQ |
0.5-1 |
Single valve, dual tanks, one in use, one on standby |
| SYS－2RQ |
1-1.5 |
| SYS－3RQ |
2-3 |
| SYS－4RQ |
3-5 |
| SYS－8RQ |
6-8 |
| SYS－10RQ |
8-10 |
| SYS－13RQ |
12-13 |
Dual valve, dual tanks, one in use, one on standby |
| SYS－15RQ |
13-15 |
| SYS－20RQ |
15-20 |
| SYS－30RQ |
20-30 |
| SYS－40RQ |
30-40 |
| SYS－50RQ |
42-50 |
| SYS－55RQ |
50-55 |
| SYS－20RQ |
12-20 |
Dual valve, dual tanks supplying water simultaneously |
| SYS－28RQ |
15-28 |
| SYS－35RQ |
17-35 |
| SYS－45RQ |
20-38 |
| SYS－60RQ |
30-55 |
| SYS－80RQ |
45-80 |
| SYS－100RQ |
55-100 |
Application Areas
This equipment is widely used in boilers, air conditioning, refrigeration systems, etc., in industrial or civil systems such as petrochemical, light industry and textile, food hygiene, hotels and restaurants.
Company Profile
Beijing SYS Science & Technology Co., Ltd was founded in 2000 and is an innovative comprehensive service provider specializing in integrated water environment governance. Adhering to the mission of "taking water treatment as its own responsibility", SYS continuously optimizes and innovates core technologies and services from a systematic perspective, based on its proprietary core technologies and 25 years of experience in water environment governance. It has established a full-lifecycle integrated management service system covering "consultation, planning, design, manufacturing, implementation, and operation", and possesses strong market competitiveness in fields such as basin planning and governance, construction and upgrading of urban and industrial park sewage treatment facilities, water quality improvement of rivers, lakes and landscapes, black and odorous water treatment, rural sewage treatment, and circulating water system treatment.
Rooted in China and serving the world, SYS has carried out exchanges and cooperation with more than 20 countries and regions globally. Over the past 25 years, it has participated in the construction and operation of more than 1,000 water resources projects and over 5,000 circulating water projects.
As a national high-tech enterprise, SYS has successively overcome key technical challenges such as ultra-limit nitrogen removal, ultra-limit phosphorus removal, low-temperature sewage biological treatment, sludge source reduction, and micro-polluted water treatment through continuous R&D and technological accumulation. It holds 124 independent intellectual property rights, including 24 invention patents. Its three core proprietary technologies—Rapid Separation Biological Treatment Technology, Spore Transfer Technology, and Ion Balance Device Technology—have been evaluated by experts from the Ministry of Science and Technology as reaching the international advanced level and leading domestic level overall.
Global Cooperation Network
SYS is based in China and have cooperating clients in more than 20 countries and regions worldwide.
Company Performance
SYS holds a unique competitive edge in the field of circulating water systems and has consistently remained at the forefront of the industry.
Since its establishment, SYS has successfully completed over 5,000 circulating water projects, with a total contract value exceeding RMB 1 billion.Our project portfolio spans a wide range of sectors, including landmark office buildings, steel plants, airports, universities, subways, as well as cloud computing and data centers. In particular, over the past three years, SYS has achieved remarkable performance in the data center sector, completing more than 200 projects with a total contract value exceeding RMB 50 million.
Application Areas
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems
Application Scenarios
Stadium, Data centers, Rail transit, Airports, Office buildings, Steelworks, Electric Power Plant, Colleges and universities, etc.

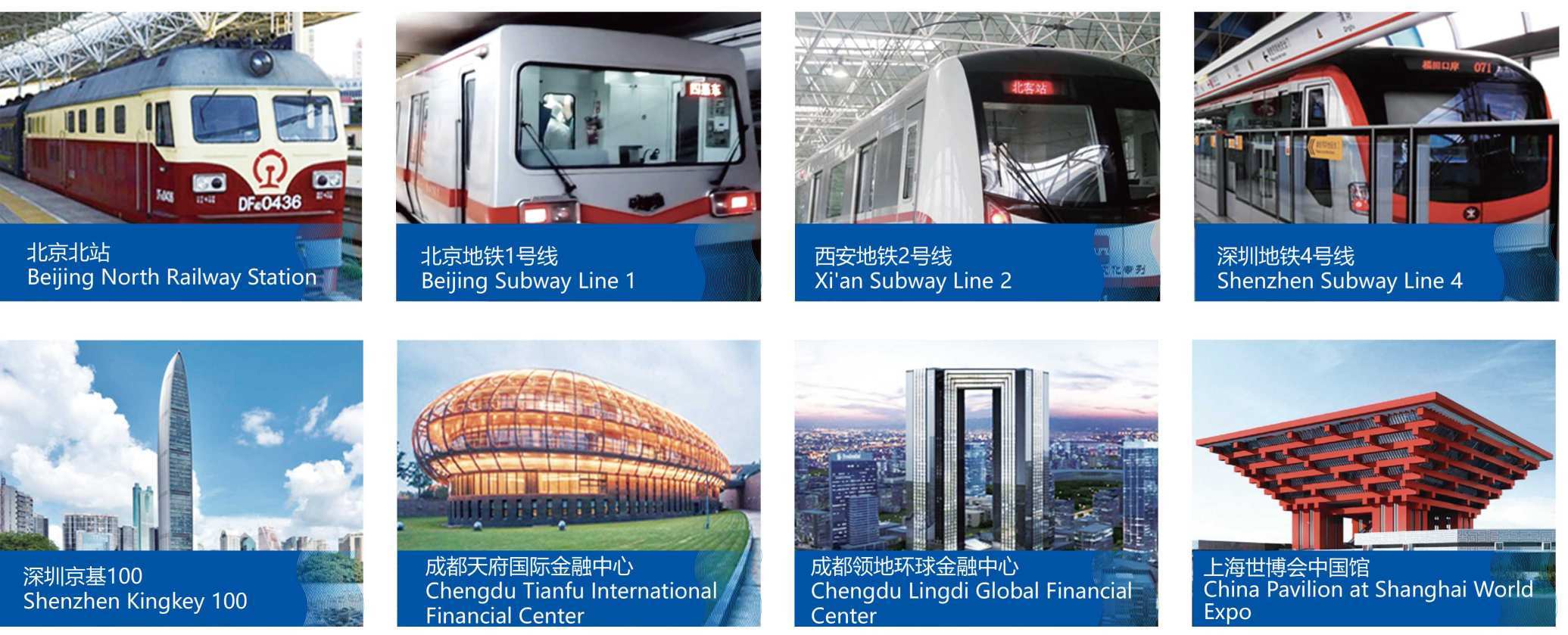

Circulating Water Projects
· Data Center
· Stadium
· Rail Transit & Landmark
· Airport
· Hospital
· College & University Projects
· Bank
· Power Plant
· Others
